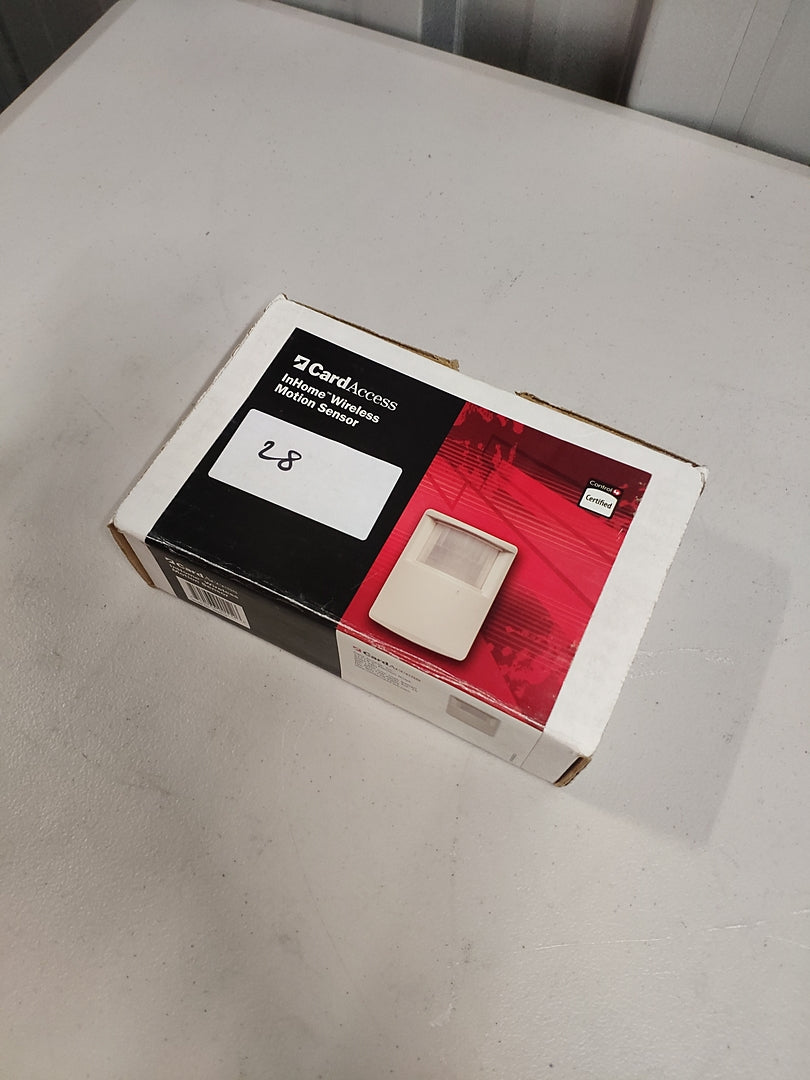

Description: New - The Card Access Wireless Motion Sensor works with your Control4® system and combines the features of a passive infrared (PIR) motion sensor with ambient light sensing detection into a single device. ... The Wireless Motion Sensor also “greens” up the Control4-automated home by enabling occupancy-based automation controls.
Specifications Model Number(s):
WMS10-2, WMS10-2-ZP
Motion Detection Method:
Passive Infrared (PIR)
Coverage:
110°-160° Wide Angle Lens 10-50 ft (3m-15m) depending on sensitivity setting, mounting angle and temperature. Motion Sensors may be cascaded together to improve coverage.
Recommended Mounting Height:
7ft nominal (2.1m). Variable dependent upon desired application
Internal Light Sensor Measurement Range:
~0.1 lux to 10,000 lux
LED Indicator:
Red LED to indicate motion upon initial power up or after a programming change is sent from Composer. Green LED for radio test (EmberNet only).
Unit Dimensions:
1.8in x 2.5in x 3.4in (47.6mm x 63.5mm x 85.7mm)
Power Source:
9V alkaline (included) or lithium battery. 9-24V AC/DC Power Adapter (Model No. MPS10A) also available from Card Access.
Power Usage:
~17mA fully active
Estimated Battery Life:
1 to 2 years depending on usage (standard 9V alkaline battery), lithium battery will provide longer operation.
Regulatory:
CE-EN55022:1994 Class B (CISPR) EN50082-1:1992 CE-EN55025 FCC Part 15 Class B CE
