SHOWROOM (Brief Demonstration period - less than 20 hours) / MINT CONDITION - BOXED IN ORIGINAL PACKAGING
Pioneering Technology
The Aurender S10 is the world’s first audiophile music player to incorporate an FPGA-based All Digital Phase Locked Loop system with an Oven-Controlled Crystal Oscillator (OCXO) clock in order to minimize jitter in the SPDIF outputs. A solid-state drive cache for playback, a low noise linear power supply for audio circuits, fan-less design and extensive shielding using thick aluminum partitions also minimize and eliminate the many types of jitter and noise.
Full Range of Digital Audio Outputs and I/O Ports
Designed to be matched with high performance digital-to-analog converters, the Aurender S10 is equipped with a full range of SPDIF outputs (AES/EBU, coaxial, optical) and one USB Audio Class 2.0 output. For network connectivity and file transfers, the S10 also has a Gigabyte Ethernet port and two USB 2.0 data ports.
Aurender App Packed with Convenient Features
The Aurender App turns the iPad into a versatile user interface for Aurender Music Players. All settings and functions of the Aurender Music Player can be easily accessed through the Settings menu, and the Aurender App comes with extensive features to make managing, viewing and playing high resolution music collections a breeze.
FPGA-based All Digital Phase-Locked Loop System
An All Digital Phase-Locked Loop system (ADPLL) incorporating Field-Programmable Gate Arrays (FPGA) with OCXO clocks precisely time digital audio data transmissions and minimize jitter to below negligible levels.
Hard Disk Drive Storage and Solid-State Drive Cache Playback System
An internal hard drive provides up to 4TB of storage and a 64G solid-state drive is used to cache music for playback. If a selected song or album is already cached to the solid-state drive, the hard drive will remain asleep. This minimizes wear and tear on the hard drive. By caching songs to the solid-state drive for playback, jitter and noise resulting from spinning disks, moving heads and motors are also completely eliminated.
Separate Power Supply for Audio Components
Noise from AC power and other devices connected to the power mains is another major source of jitter and noise in the audio signal. In the Aurender S10, a low-noise linear power supply is used to effectively minimize jitter and noise. A fanless Switching Mode Power Supply delivers stable power to non-audio components and is enclosed in a separate compartment to prevent any interference to sensitive audio components.
AMM and NAS(Network-Attached Storage) Support
If you already have NAS set-up, the Aurender W20 is able to play music stored on NAS devices, AMM(Aurender Media Manager) software is available for PC/Mac. You can run AMM software on your platform of choice, please specify the location of your content on NAS then it will automatically find the Aurender in you local network and make a combining music database. It’s transparent to the user, so once you run AMM , you can select the music with all the meta-data using the Aurender Conductor App without the knowledge of the location of your music files.
S10 Specifications:
Compatible Formats DSD(DSF, DFF), WAV, FLAC, AIFF, ALAC, M4A, APE and others
Bit and Sample Rates
SPDIF : Up to 24-bit, 192kHz (PCM); 1-bit, 2.8MHz (DSD64)
USB : same as the DAC specifications (PCM);
1-bit, 2.8MHz (DSD64); 1-bit, 5.6MHz (DSD128)
User Software
Aurender iPad App
Solid-State Drive 1 x 64 GB
Hard Disk Drives 1 x 2 TB
SPDIF Clocking
FPGA-based All Digital Phase Locked Loop
Audio Clock
OCXO

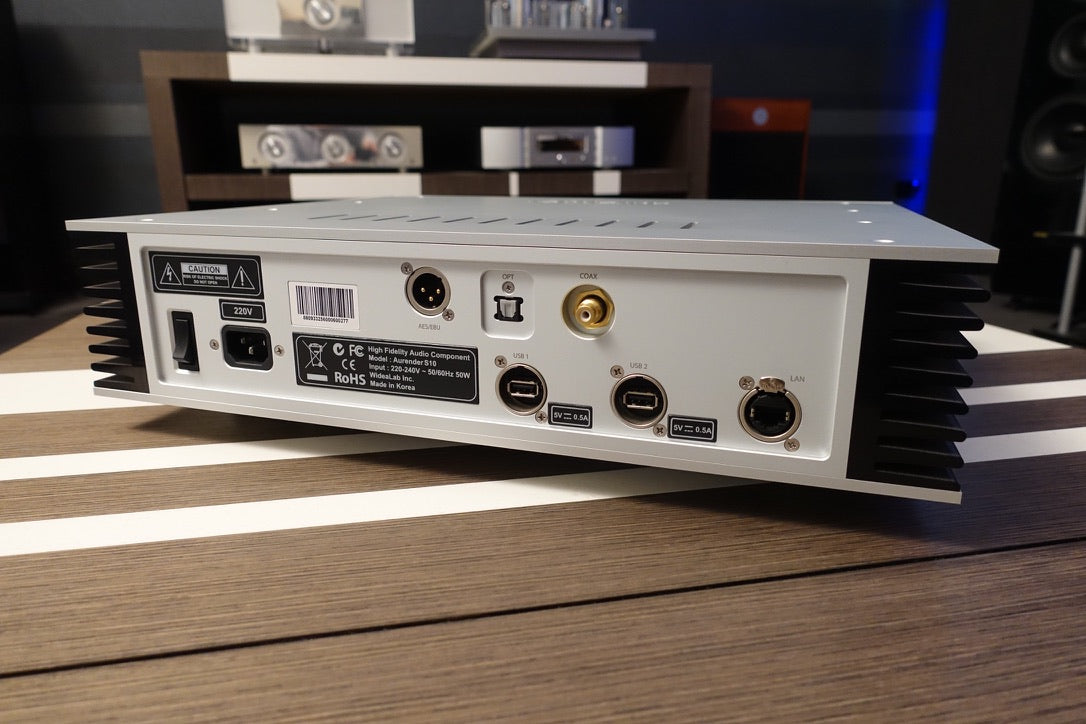

Digital Audio Outputs 1 x coaxial, 1 x optical, 1 x AES/EBU, 2 x USB Audio Class 2.0
Digital I/O
1 x Gigabit Ethernet Port, 2 x USB 2.0 Ports (used for USB Audio Class 2.0 and data)
Audio Power Supply
Linear Power Supply
CPU Power Supply
Fanless 50W Switching Mode Power Supply
CPU Board
Mini-ITX
Main Memory 2GB
HDD Isolation
Rubber damping and shielding with aluminum partitions
Finish Silver or Black
Dimensions 430mm x 97mm x 353mm
16.93in x 3.82in x 13.90in
Weight 14kgs 30.86lb
