Description: Mint Condition - Showroom Display (Boxed in Original Packaging)

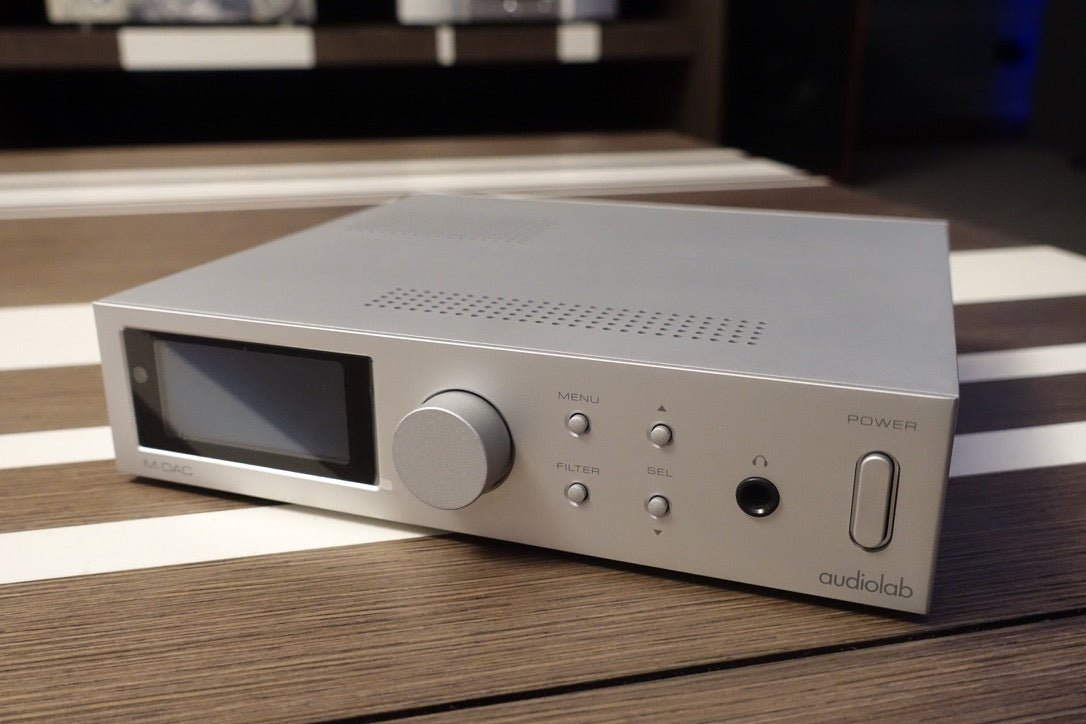

The M-DAC is housed in a smart styling aluminium case with solid build and ample connectivity. Alongside the USB input with Asynchronous data processing, there are two each of coaxial and optical digital inputs, and one each of coaxial and optical digital outputs. Audio signal is provided via RCA single-ended and XLR balanced audio outputs.
A wand like remote control handset allows you to switch inputs, select from preset digital filters and alter the display. The large clear screen allows you to see what input is being used and the sample rate being received. High-res 24-bit/192kHz music files can be played on the M-DAC via the coaxial input, while optical and USB inputs support 24-bit/96kHz data.
Specifications:
Model M-DAC
General description Digital-to-analogue converter
DAC ESS Sabre 32 9018 chip
Resolution 32 bits
Maximum Sampling Frequency 84.672MHz
Digital input 2 x 24-bit/192kHz coaxial ,2 x 24-bit/96kHz
Toslink optical, 1 x 24-bit/96kHz
USB Digital output 1 x coaxial, 1x Toslink optical
Output voltage RCA: 2.25V RMS,XLR: 4.5V RMS
Total Harmonic Distortion RCA: <0.002%; XLR: <0.0008%
Frequency response 20Hz - 20kHz (± 0.2dB)
Dynamic range RCA: >115dB;XLR: >122dB
Crosstalk RCA: <-120dB; XLR: <-130dB
Dimensions (H x W x D) 59 x 250 x 252mm
Power requirements (depending on region) 220--230V /100-120V (50 ~ 60Hz)
Colour Black, Silver
Standard accessories:
Power cord, remote control handset, batteries, user manual
